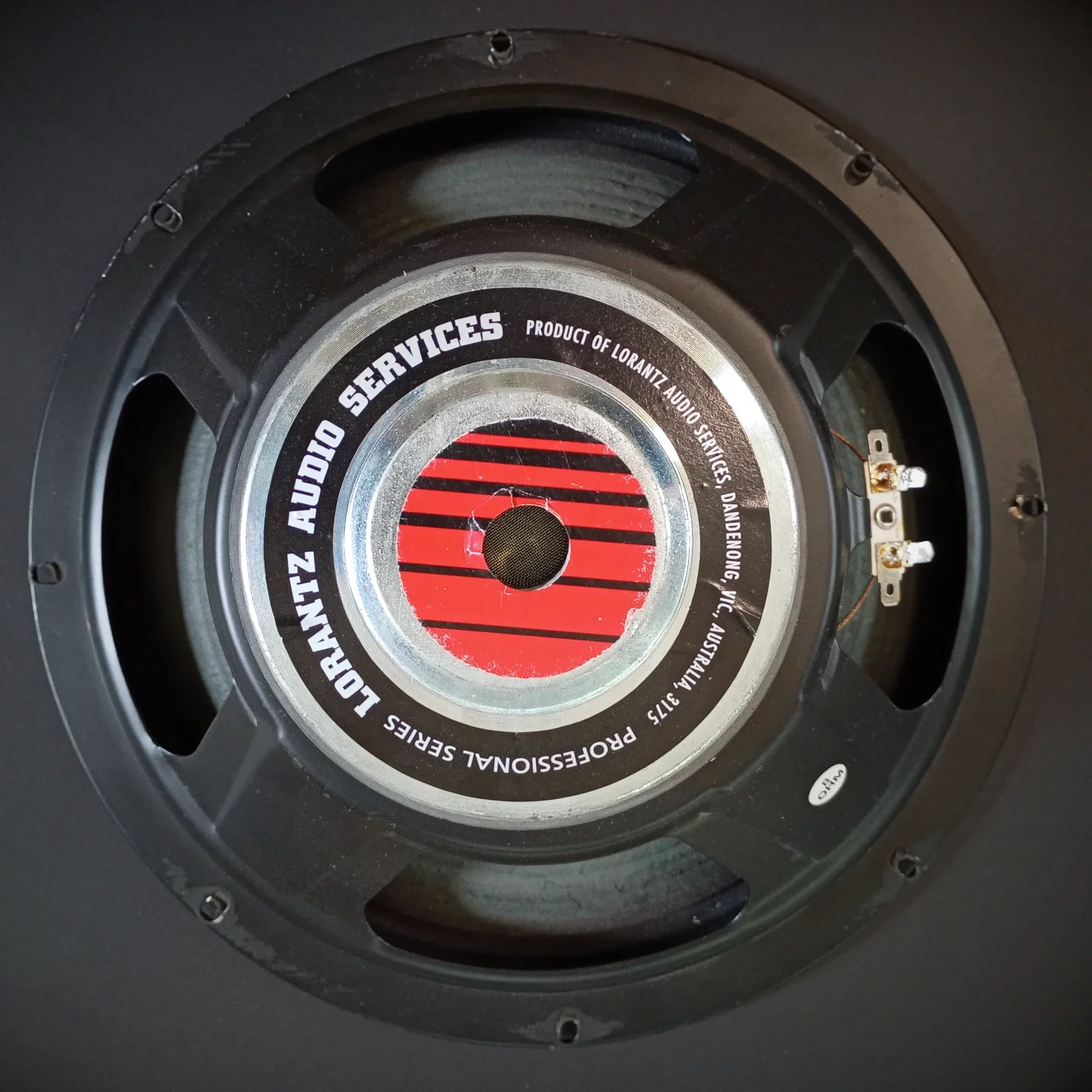

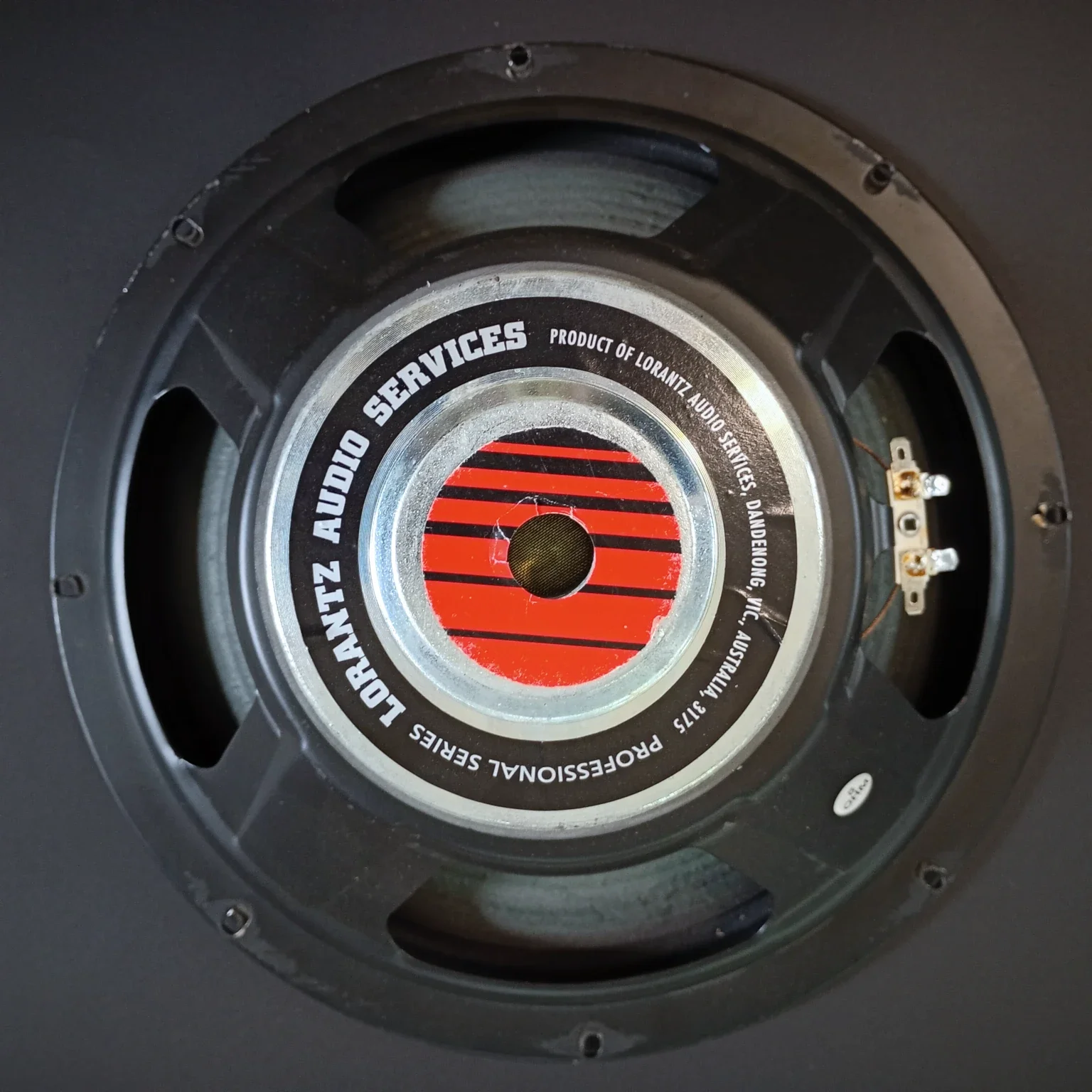

Locally made general purpose ferrite-magnet musical instrument loudspeaker. Refined over 30 years this model delivers superb performance and reliable operation in a wide range of musical applications.
The high efficiency, modest linear travel, wide frequency range, light weight make this driver is an excellent selection for low power combo amplifiers built in the 70’s.

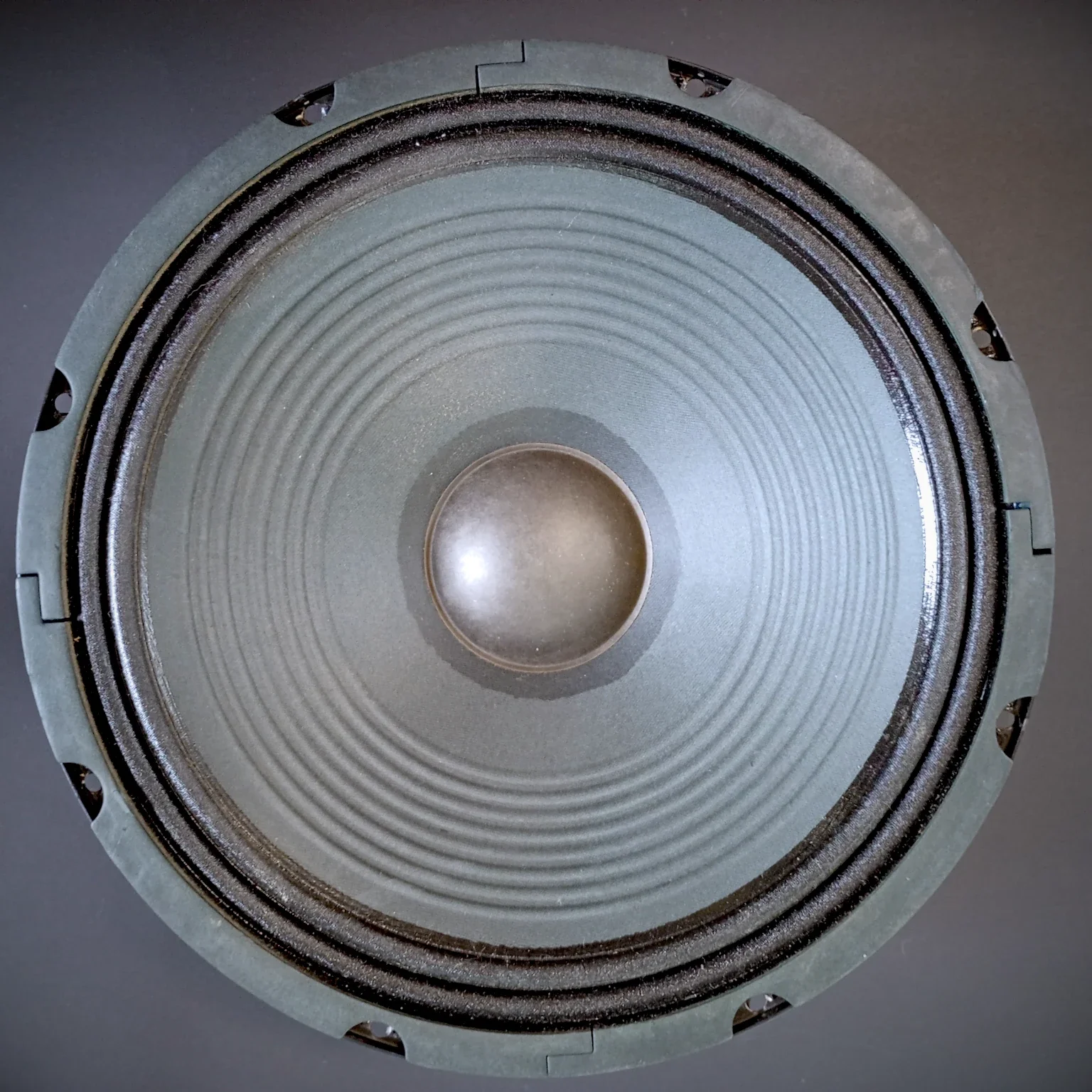

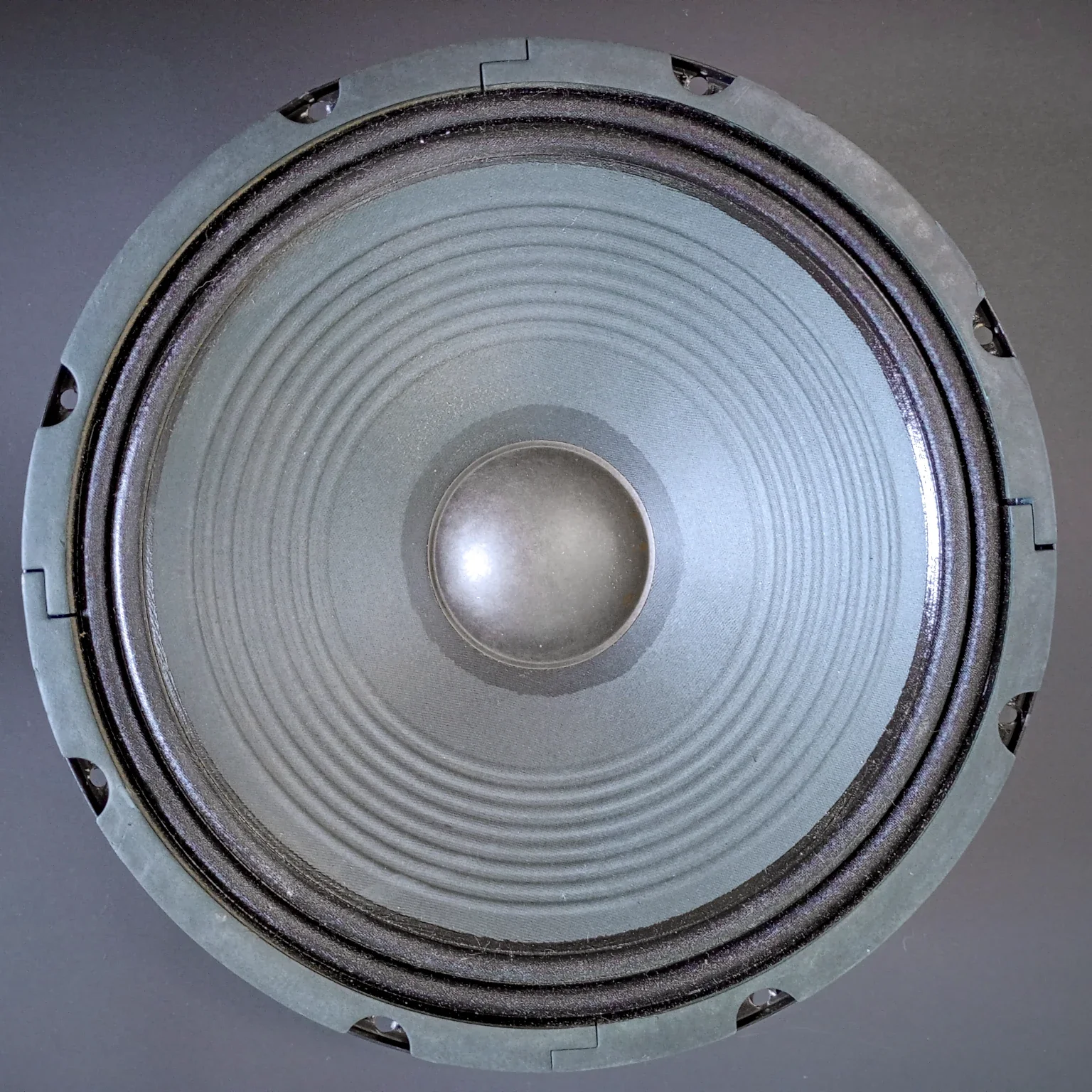

Crisp clear sound, wide frequency range, high efficiency is achieved with a paper cone manufactured and treated under our control. The cone body is manufactured from our OFP cone material, air dried for maximum stiffness and terminated with an “m” type treated cloth surround.
Specifications:
Size: 12”
Magnet type: Ceramic
Power rating: 200 watt
Impedence: 8 ohm
Sensitivity: 95.0 dB
Frequency range: 35 – 5000Hz
Resonance frequency: 50Hz
